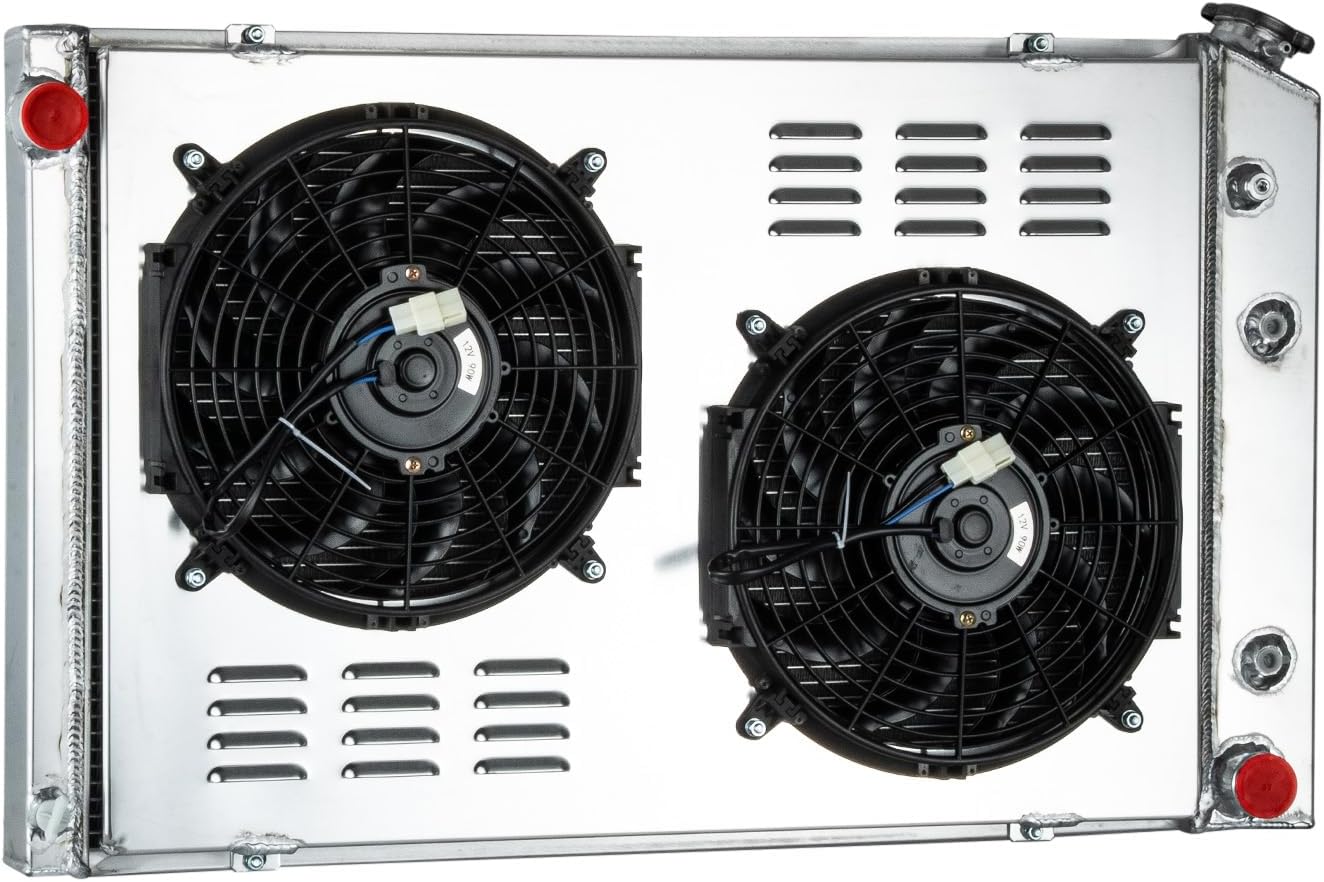

4 Row Core Radiator for 1973-1991 Chevy GMC C/K Series Pickup & Trucks C10 C 20 C30 K10 K20 K30 Multiple V8 Models All Aluminum Radiador para Chevy + 2 X 12" Fan W/Shroud for Chevy Radiator

Vehicle Fitment For 1985 1986 1987 Chevy Pickup Truck 19" Core For 1981- 1991 Chevy Truck (21" x 33") For 1973-1991 Chevy Suburban For 1973-1991 Chevy Blazer / Jimmy For 1973-1987 Chevy Pickup Trucks For 1981-1990 GM Truck 5.7 7.4 For 1985 1986 GMC C2500 C3500 K1500 K2500 For 1981-1990 Chevy R Series For 1981-1990 Chevy K Series For Chevy For GMC Blazer Jimmy Suburban For 1973-1987 Chevy Truck, 1973-1991 Blazer (19 x 28-1/4" Core) For 1973-1991 Chevy C/K Series Trucks For 1973-1981 K5 Blazer For 1973-1980 CHEVY C/K SERIES C10/C20/K10 PICKUPManufacturer Part Number: 716,CC716,CU716,RAD716,DPI716,MC716,SBR716,KKS716 Other Part Number: CU844, SPTCU716, 2308, 40385, 0AAS0778, 433716 Interchange Part Number: CU1599, EC716, 1599, B1599, B716, MC716, 1605-37020 Radiator Specification 4 Row of tubes Core Racing Design Mounting Type : Saddle Surface finish: Aircraft 5057 grade aluminum tank & core Petcock Drain: OEM style brass petcock drain Fans Details Maximum Fan CFM: 1730 cfm Fan Diameter (in): 12.050” Thickness (in): 2.500” Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Package Include: 1 X 4-Row Aluminum Radiator 1 X Aluminum Shroud 2 X 12" Fans

• [Fitment]: For 1985 1986 1987 Chevy Pickup Truck 19" Core; For 1981- 1991 Chevy Truck (21" x 33"); For 1973-1991 Chevy Suburban; For 1973-1991 Chevy Blazer / Jimmy; For 1973-1987 Chevy Pickup Trucks; For 1981-1990 GM Truck 5.7 7.4; For 1985 1986 GMC C2500 C3500 K1500 K2500; For 1981-1990 Chevy R/ K Series; For Chevy For GMC Blazer Jimmy Suburban; For 1973-1987 Chevy Truck, 1973-1991 Blazer (19 x 28-1/4" Core); For 1973-1991 Chevy C/K Series Trucks For 1973-1981 K5 Blazer; For 1973-1980 CHEVY C/K SERIES C10/C20/K10 PICKUP
• [Reference Number]: Manufacturer Part Number: 716,CC716,CU716,RAD716,DPI716,MC716,SBR716,KKS716; Other Part Number: CU844, SPTCU716, 2308, 40385, 0AAS0778, 433716; Interchange Part Number: CU1599, EC716, 1599, B1599, B716, MC716, 1605-37020;
• [Specifications]: Core Size: 19" H x 28-1/2" W x 2 3/4'' T; Overall Size: 20-1/4" H x 33-1/4" W; Inlet/Outlet:1 1/2" / 1 1/2" . Transmission Oilcooler: 32×215×G1/4（Z）
• [Advantage]: Full aluminum construction with durable, TIG-welded end tanks, increased durability over the factory plastic end tank radiator. All aluminum construction & TIG-welded craftsmanship fully. High performance design, improves cooling by 30%+ temp
• [Customer Support]: If you have any questions, never mind contact our friendly,helpful,and knowledgeable customer service representatives,we will be glad to address any questions or concerns promptly.
