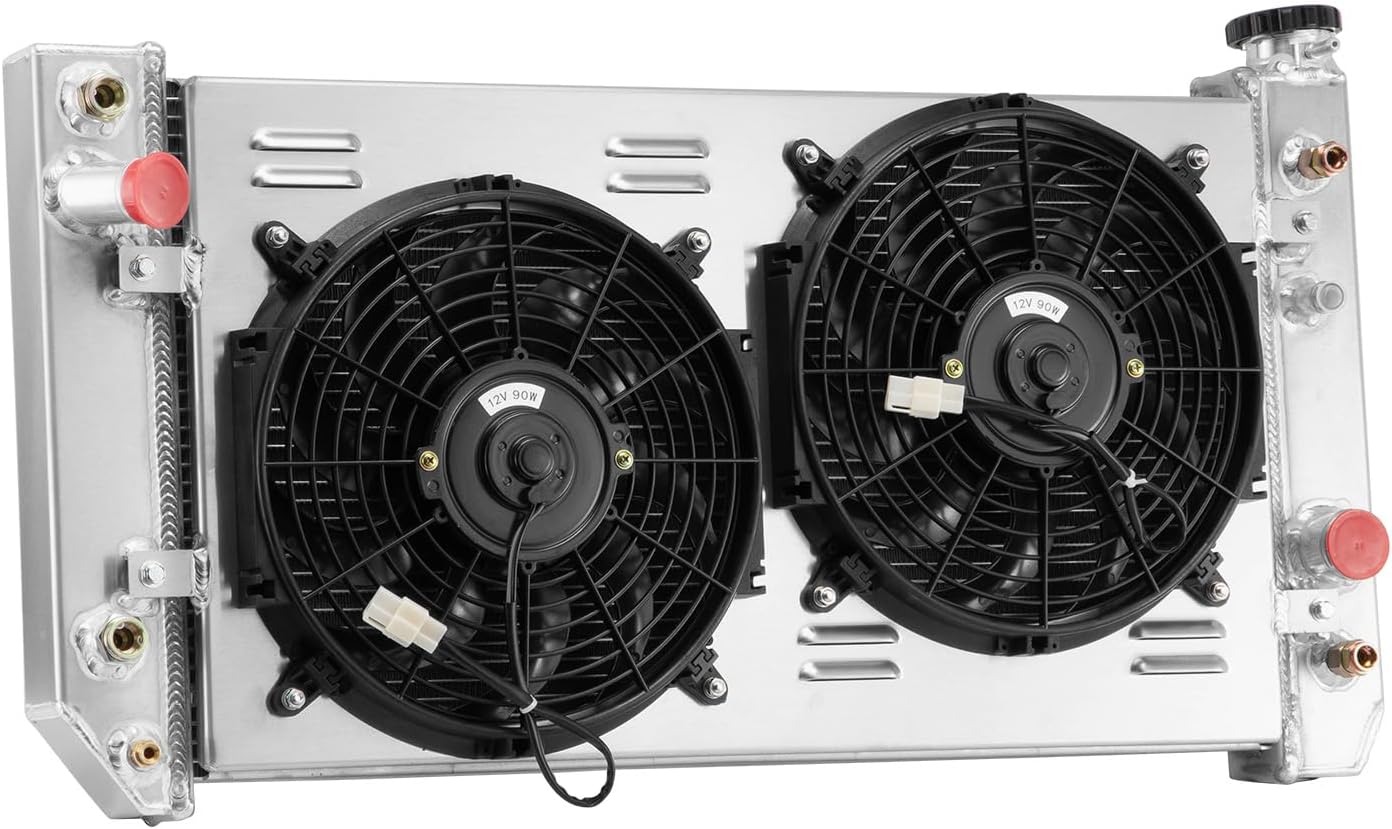

Radiator For 1988-1994 Chevy S10/S10 Blazer & GMC Jimmy/S15/S15 Jimmy/Sonoma &91-94 Oldsmobile Bravada 4.3L V6 GAS,All Aluminum 3 Row Radiators + Shroud + Fan + Relay

FitmentFor Chevy S10 4.3L V6 GAS 1988-1993For Chevy S10 Blazer 4.3L V6 GAS 1988-1994For GMC Jimmy 4.3L V6 GAS 1992-1994For GMC S15 4.3L V6 GAS 1988-1990For GMC S15 Jimmy 4.3L V6 GAS 1988-1991For GMC Sonoma 4.3L V6 GAS 1991-1993For Oldsmobile Bravada 4.3L V6 GAS 1991-1994Radiator DetailsRow Count: 3 RowUpper Inlet: 1.31in located on driver sideLower Outlet: 1.56in located on passenger sideSurface Finish: Aircraft Grade Raw AluminumOEM style brass petcock drainCNC machined filler neck and capFans SizeMaximum Fan CFM: 2300±200Fan Diameter X Height X Thickness:12.05" X 12.05" X 2.5"Number of Blades: 10 blades (Plastic) Amp Draw: 12.70 ampsMaximum Fan RPM: 2,250 rpmThermostat KitRED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.

• For 1988-1993 Chevy S10 4.3L | For 1988-1994 Chevy S10 Blazer 4.3L | For 1992-1994 GMC Jimmy 4.3L | For 1988-1990 GMC S15 4.3L | For 1988-1991 GMC S15 Jimmy 4.3L | For 1991-1993 GMC Sonoma 4.3L | For 1991-1994 Oldsmobile Bravada 4.3L V6 GAS
• Core Size: 15" H x 26.25" W x 1.73" T; Overall Size: 18" H x 32" W; Inlet/Outlet Diameter: 1.31" /1.56"; Transmission Oil Cooler: YES

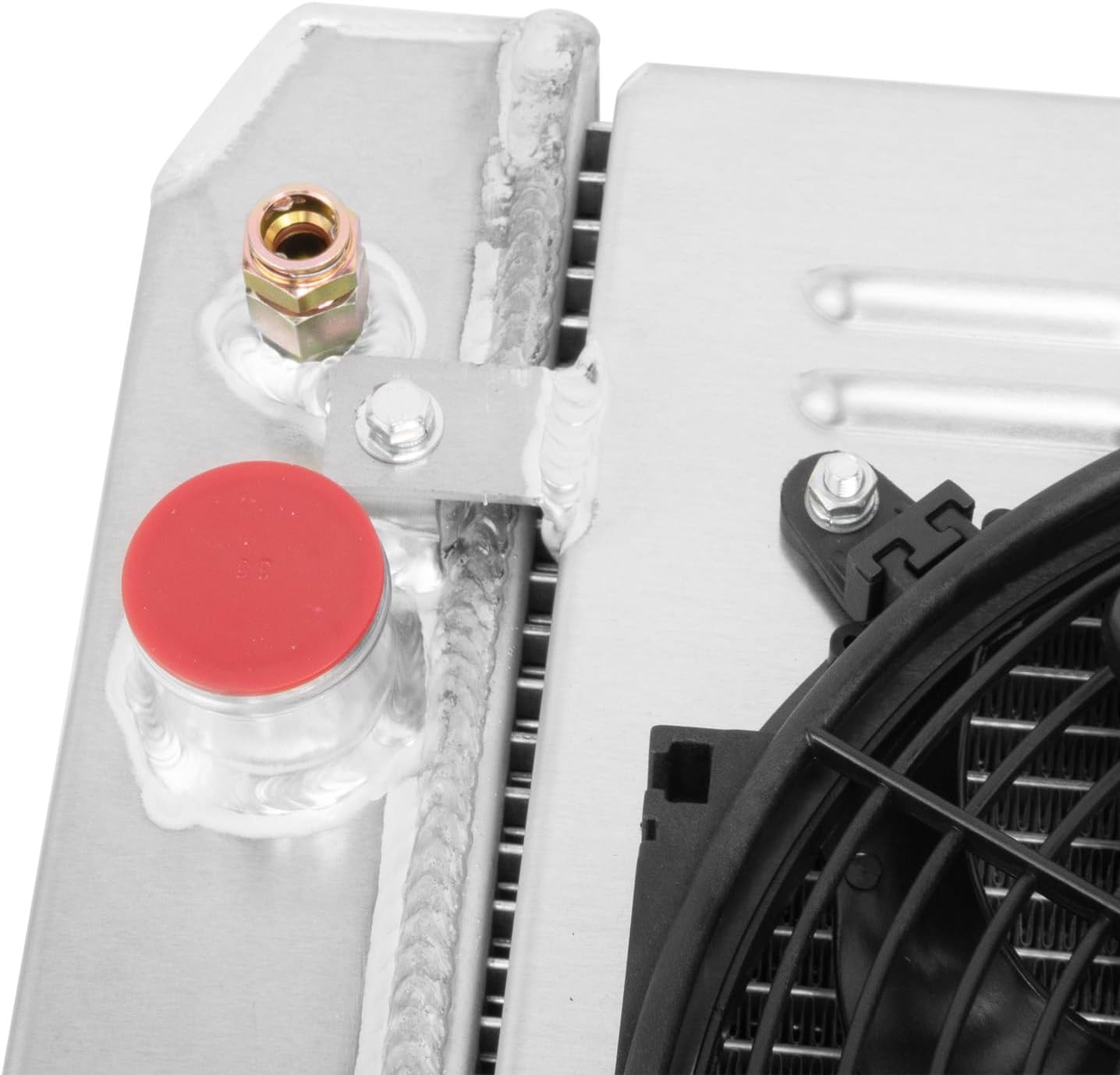

• High Performance. Full AA5052 Aircraft Aluminum craftsmanship radiator & exclusive tube design that dramatically increases cooling efficiency by up to 30%~45%, strong and durable, 100% welded by TIG, No Epoxy. 100% Leak Tested
• Easy to Install. Meticulously built to superior OE standards a precise fit, direct bolt-on replacement. No Drilling or Modifications Needed Installation
• Crafted by our professional team using the highest-grade materials for exceptional longevity. Any problem, such as quality problems (leaking)/damaged/not received, please contact us via email first
